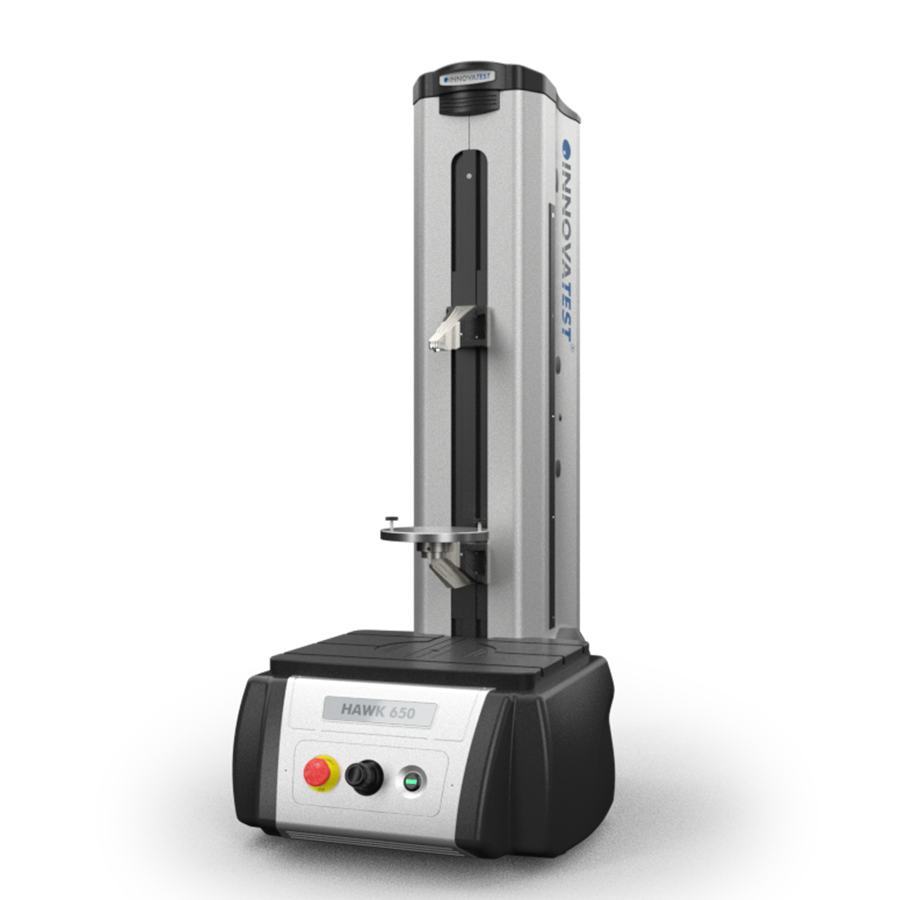

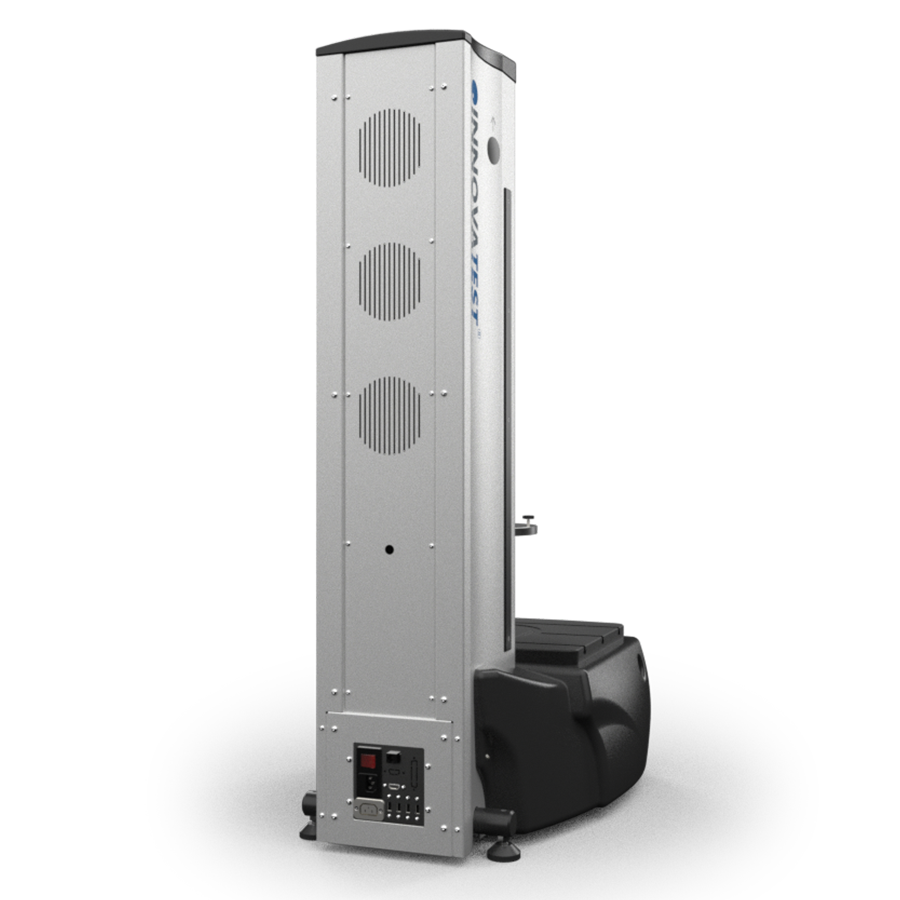

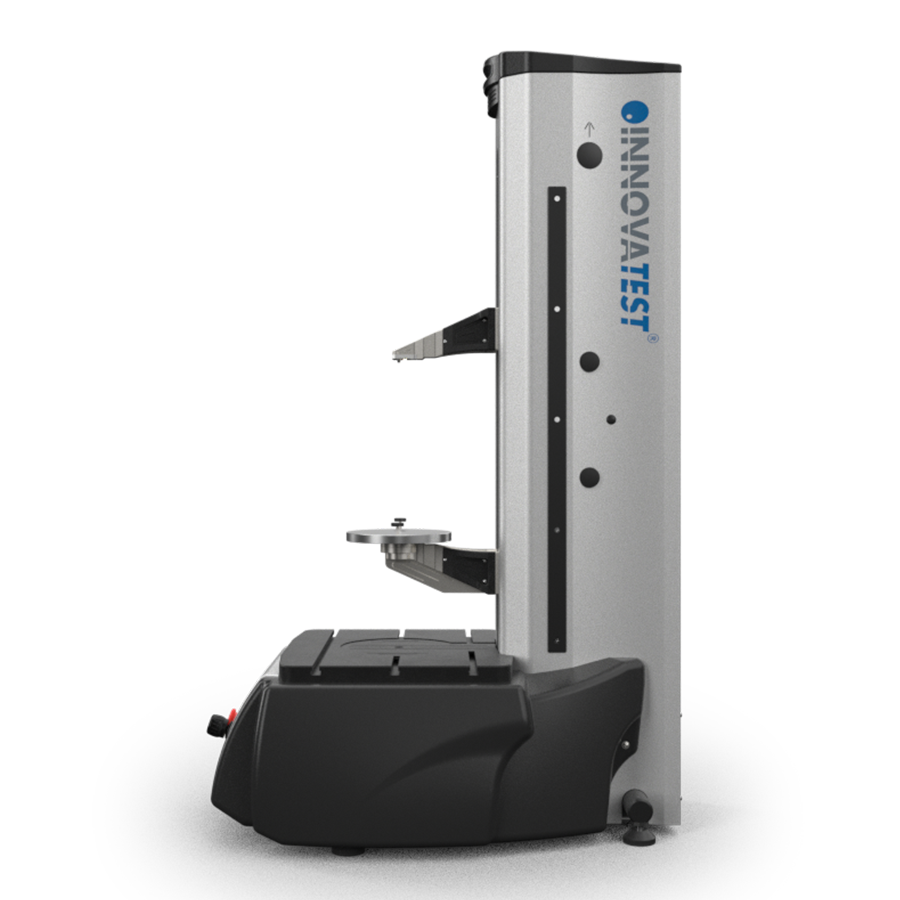

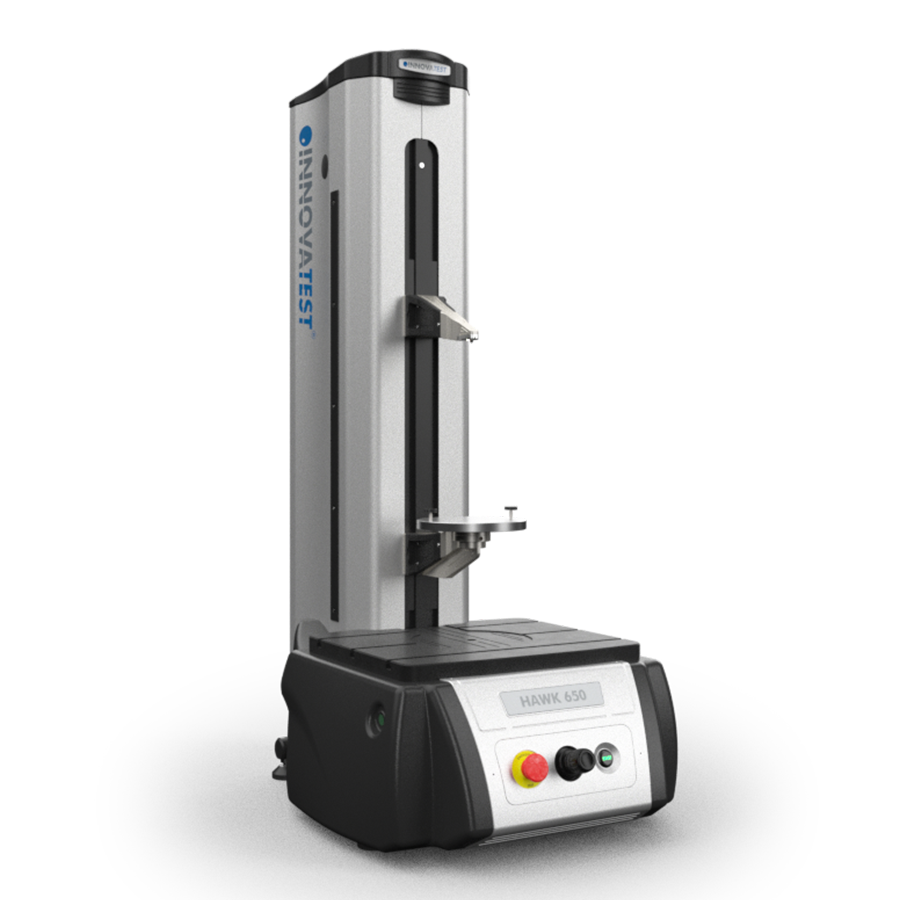

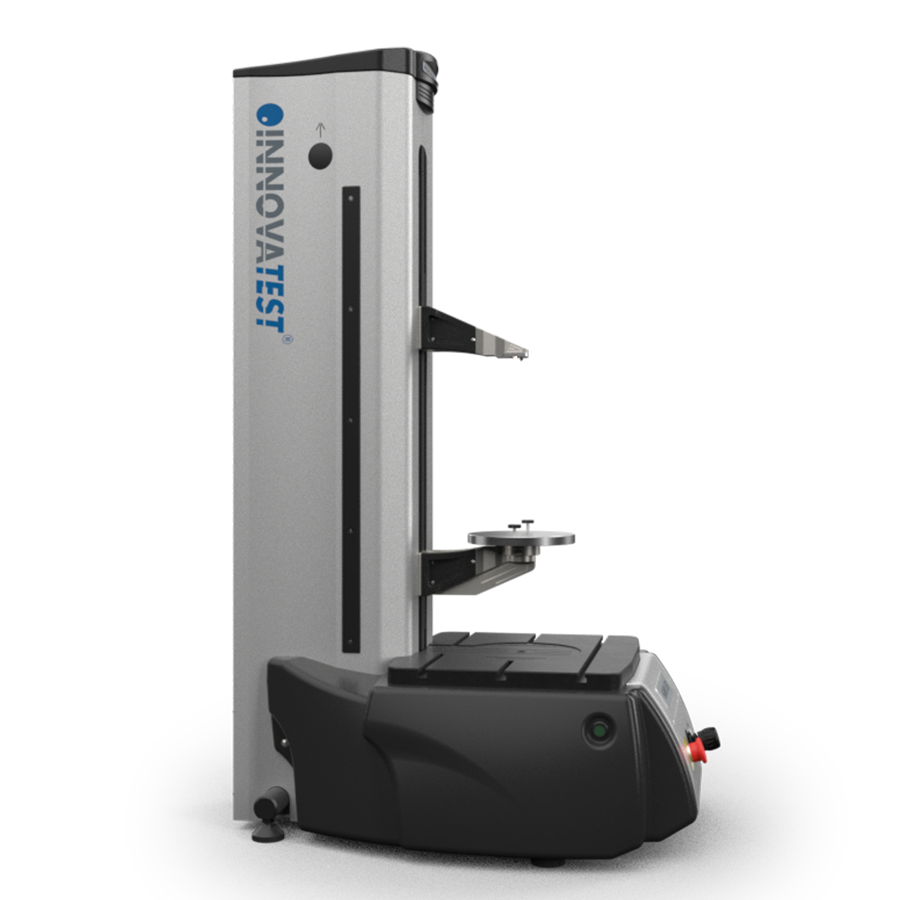

The 652RS-IMP is the most technically advanced model in the group of HAWK testers. Not only has this model been equipped with an integrated Fanless Industrial PC, running Windows 10 and the INNOVATEST full version of IMPRESSIONS™ work flow, tester control software. Advanced tester operation at your fingertips.
Unique and alone in the world is the advance technology of a double Z-axis system providing 650mm working height, but also different test positions for your special shaped samples.
The second adjustable position can support a wide range of different and specialized anvils or tables to support your test piece from the inside, outside, top or the bottom.
No more time consuming of cutting, grinding and polishing of your samples for a couple of hardness tests.
Scales: Rockwell, Superficial Rockwell, (Brinell, Vickers optional)
Test forces: 1kgf-187.5kgf
Brinell test forces from 1kgf-187.5kgf (optional). Vickers test forces from 1kgf-150kgf (optional). Knoop test forces from 1kgf-5kgf (optional)Microscope: Brinell microscope package, for Brinell measurement (optional)
Load app. system: Fully automatic, Load cell, closed loop, force feedback. Full height linear slide, backlash free mechanical system
Display: Industrial 15’’ touchscreen
Software: IMPRESSIONS™ Software, workflow control, integrated industrial PC, Windows 10 licensed
Output: USB, RJ45, WiFi
Illumination: Power LED in nose for bright sample illumination
Bottom Shell: Replaceable ABS covers avoids body damage
Workpiece Acc: 650mm (H) X 165mm (D)
Anvils: Hardened anvil 200mm & large worktable 425×370 + T-slots
